Metal Beam Crash Barriers

Metal Beam Crash Barriers

 Metal Crash barriers are basically Road safety system, which is provided to ensure high resistance to impact because of its flexible beam action. In this way it minimizes the speed of vehicle and also increases the driver confidence while riding through any critical areas. Aarneel Technocrafts Pvt. Ltd. is a leading manufaturer and supplier of Metal Beam Crash Barriers (MBCB). Our range of Metal Beam Crash Barriers types are W-Beam and Thrie-Beam.

Metal Beam Crash Barriers are manufactured by using the Cold Roll Forming Technology with multiple roll forming stations. This enables us to achieve our productivity and targets on regular basis along with greater quality and accuracy.
W-Beam Structural Elements:
Process Methods:

  • Cold Roll Forming, Piericing, Shearing, Profile Bending, Hot Dip Galvanizing

Sizes/Ranges:

  • W-Beam                              - L 4318 x W 312 x H 81 x T 2.50 to 3.0 mm
  • End Section                        - L 736 x W 312 x H 81 x T 2.50 to 3.0 mm
  • Post                                       - L 1100 to 1800 x W 150 x H 75 x T 4.50 to 5.0 mm
  • Spacer                                  - L 330 to 360 x W 150 x H 75 x T 4.50 to 5.0 mm
  • Bolts & Nuts (Hex/Button head)         - M16 x P 2.5 x L 40m

Raw Materials Specifications:

  • W-Beam/End Section    - HR Sheet T 2.50 to 3.0 mm as per IS:1079 HR3 / IS:2062  E-250 A
  • Post & Spacer                    - HR Sheet T 4.50 to 5.0 mm as per IS:2062 E-250 A
  • Bolts & Nuts (Hex/Button head)          - M16 as per IS:1367 / 136

Surface Finishing:

  • Hot Dip Galvanized (550 g/m²) - As per IS:2629

Note:

  • Specification of raw materials and surface finishing can be customized to client's needs.

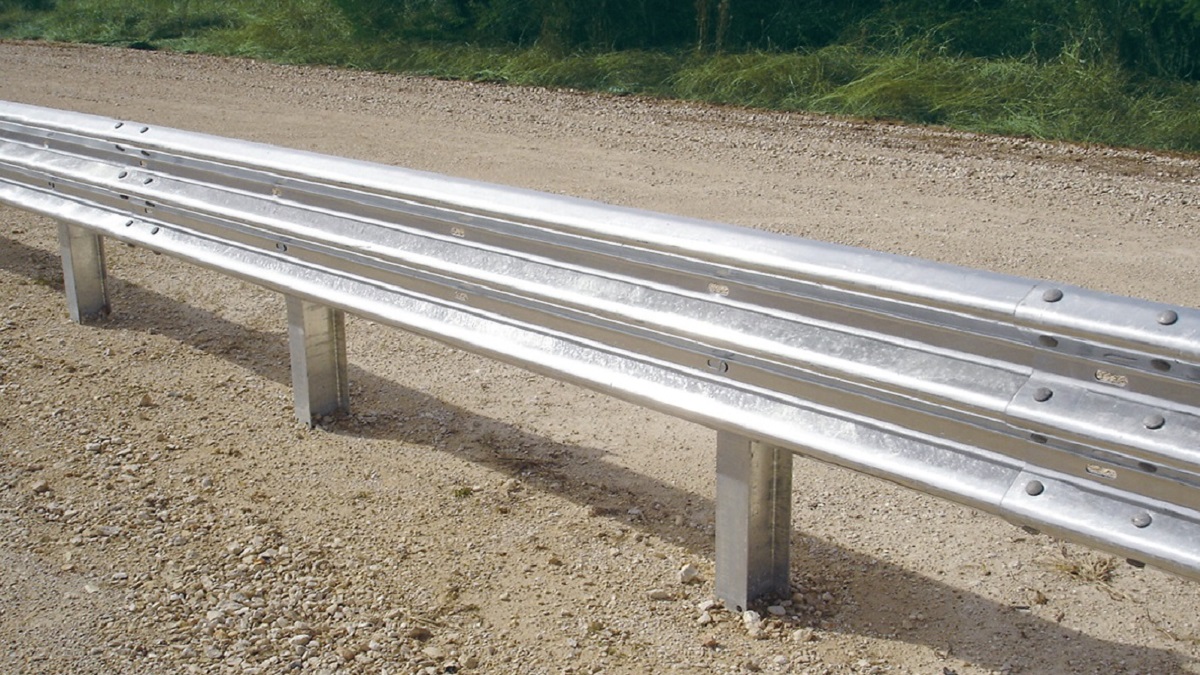

Thrie-Beam Structural Elements:

Process Methods:

  • Cold Roll Forming, Piericing, Shearing, Profile Bending, Hot Dip Galvanizing

Sizes/Ranges:

  • Thrie-Beam                              - L 4318 x W 502 x H 81 x T 2.50 to 3.0 mm
  • End Section                        - L 760 x W 502 x H 81 x T 2.50 to 3.0 mm
  • Post                                       - L 2000 to 2100 x W 150 x H 75 x T 4.50 to 5.0 mm
  • Spacer                                  - L 550 x W 150 x H 75 x T 4.50 to 5.0 mm
  • Bolts & Nuts (Hex/Button head)         - M16 x P 2.5 x L 40mm

Raw Materials Specifications:

  • Thrie Beam/End Section    - HR Sheet T 2.50 to 3.0 mm as per IS:1079 HR3 / IS:2062  E-250 A
  • Post & Spacer                    - HR Sheet T 4.50 to 5.0 mm as per IS:2062 E-250 A
  • Bolts & Nuts (Hex/Button head)          - M16 as per IS:1367 / 1364

Surface Finishing:

  • Hot Dip Galvanized (550 g/m²) - As per IS:2629
